Orbi Packaging

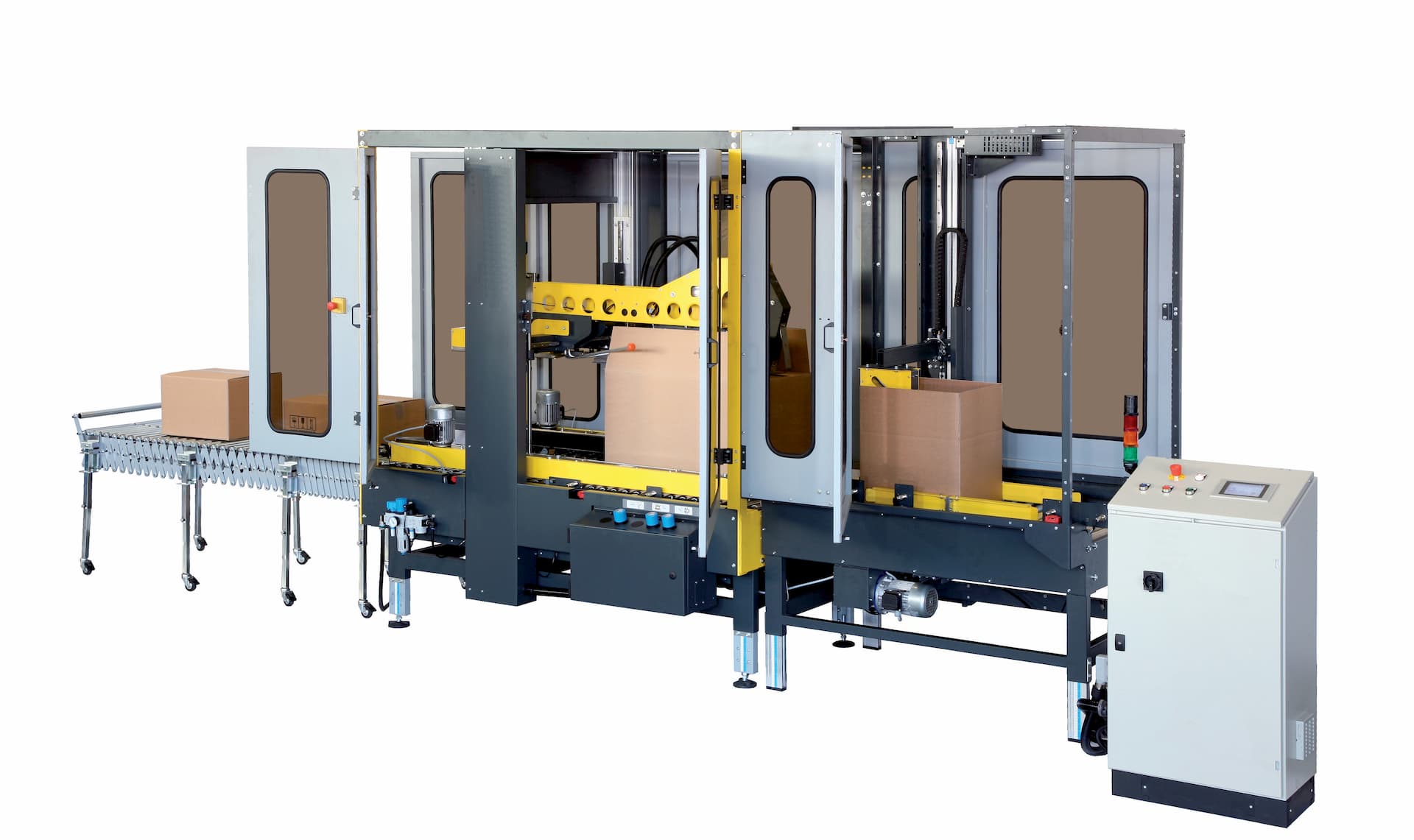

SM44HS Automatic Case Sealers with Random Adjustment

SM44HS Automatic Case Sealers with Random Adjustment

Please sign in to see pricing

Orbi Packaging presents the SM44HS range of Automatic Case Sealers, engineered for versatile and efficient box sealing with minimal operator involvement.

The SM44HS is a “Random” case sealer, capable of automatically adjusting to different box sizes and sealing the top flaps without manual input. It applies two self-adhesive tape stripes along the top and bottom center lines of each box, delivering a reliable, consistent seal on every carton.

Operation is intuitive, fast, and simple, while installation is quick and hassle-free. Optional casters with brakes on all four legs make the machine easy to move anywhere on the production floor.

Equipped with an integrated flap-folding system at the top of the taping head, the SM44HS automatically folds all four top flaps before taping. This allows operators to work more efficiently, keeping their hands free for filling boxes or other tasks, ensuring a smooth and productive workflow.

View full details

Key features

  •  Automatic four-flaps-folder device
  • Side drive belts (2 x 75 mm width each)
  • Drive belts speed 30 m/min.
  • 2 motors kW 0,9 each
  • Side pressure rollers to control flaps box closing
  • Electro/pneumatic detector system boxes height
  • 2 x K11R taping unit – 50 mm width
  • Low/brake tape device
  • Side safety protections connected to electro-pneumatic
    disconnection switches
  • Safety protection grids
  • Control panel for pneumatic adjustment
  • Integrated control panel
  • Average air pressure consumption: 350 Nl/min approx.
  • Production capacity up to 800 boxes/hour
  • AS26HS indexing unit with box holding device
  • Box dimensions* Min. L 200 mm W 160 mm H 140 mm, Max. L 600
    mm W 500 mm H 500 mm

 *Other possible configurations for larger or smaller boxes
