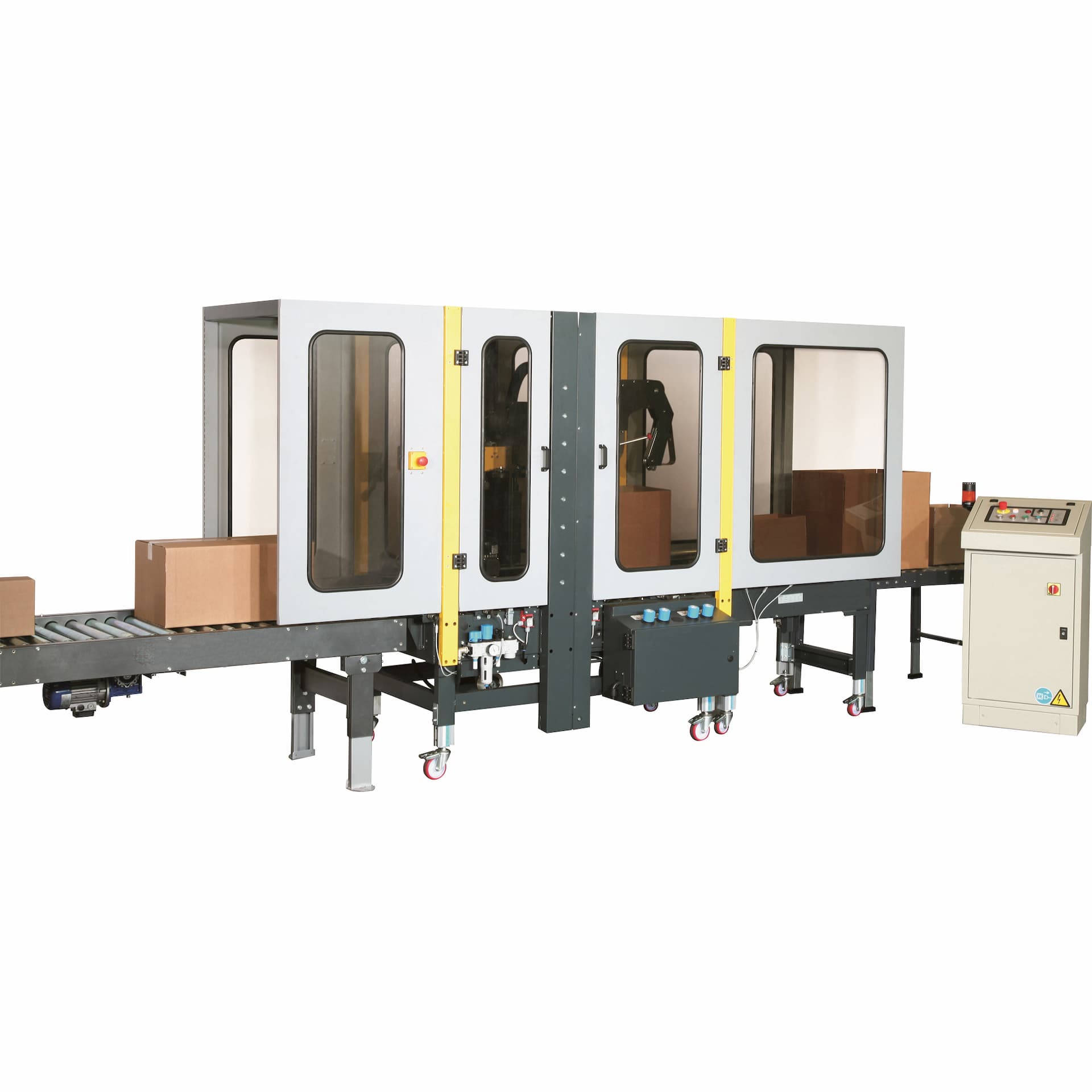

SM44HD Automatic Case Sealers with Random Adjustment

SM44HD Automatic Case Sealers with Random Adjustment

Please sign in to see pricing

Orbi Packaging is proud to offer the SM44HD range of Automatic Case Sealers, designed for flexible, high-efficiency box sealing with minimal operator involvement.

The SM44HD is a “Random” case sealer, meaning it can automatically adjust to different box sizes and seal top flaps without manual intervention. The machine applies two self-adhesive tape stripes along the top and bottom center lines of each box, ensuring a secure and consistent seal every time.

Designed for ease of use, the SM44HD is intuitive, fast, and simple to operate. Installation is quick, and with optional casters with brakes on all four legs, the machine can be easily moved throughout the workspace as needed.

An integrated flap-folding system automatically folds all four top flaps before taping, freeing the operator’s hands for filling boxes or performing other tasks. This combination of automation and user-friendly design allows businesses to increase efficiency, reduce manual handling, and maintain a smooth workflow on the production line.

View full details

Key features

  • Automatic four-flaps-folder device

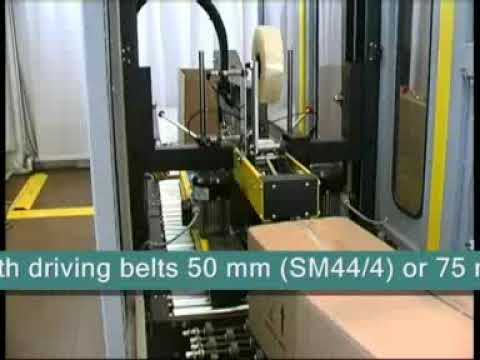

  • Side drive belts (2 x 75 mm width each)
  • Drive belts speed 30 m/min.
  • 2 motors kW 0,18 each
  • Side pressure rollers to control flaps box closing
  • Pneumatic detector system boxes height
  • 2 x K11R taping unit – 50 mm width
  • Low/brake tape device
  • Side safety protections connected to electro-pneumatic
    disconnection switches

    Safety protection grids
  • Control panel for pneumatic adjustment
  • Integrated control panel
  • Air pressure regulator
  • Average air pressure consumption: 180 Nl/min approx.
  • Production capacity up to 450 boxes/hour
  • AS24HD centering unit with box holder
  • Box dimensions* Min. L 200 mm W 160 mm H 140 mm, Max. L 600
    mm W 500 mm H 500 mm



*Other possible configurations for larger or smaller boxes”
