Key features

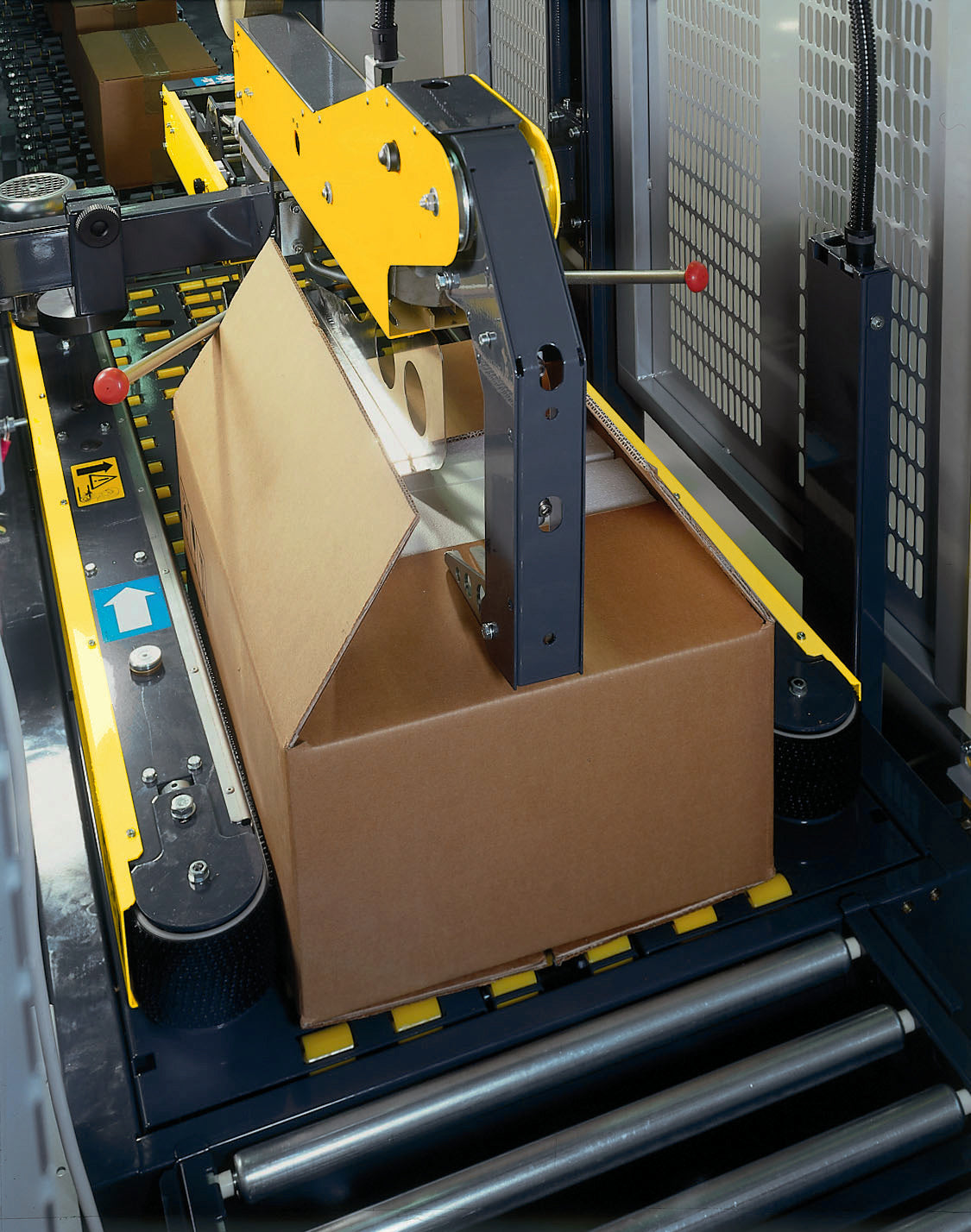

Automatic four-flaps-folder device
Manual adjustment on different box sizes (width, height, length) by handles. Time required 1′
Side drive belts (2 x 75 mm width each)
Drive belts speed 21 m/min.
2 motors kW 0,13 each
Side pressure rollers to keep top flaps one close to the other
Adjustable working height 500 – 750 mm.

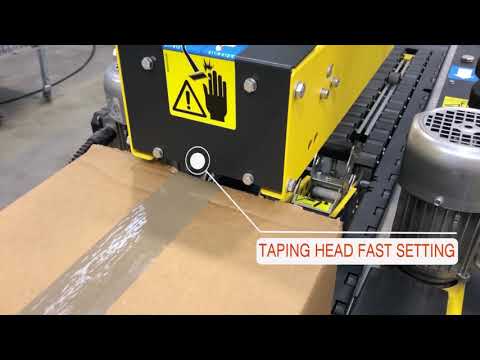

2 x K11R taping unit – 50 mm width
2 x K12R taping unit – 75 mm width only for SM116 model
Side safety protections connected to electro-pneumatic disconnection switches

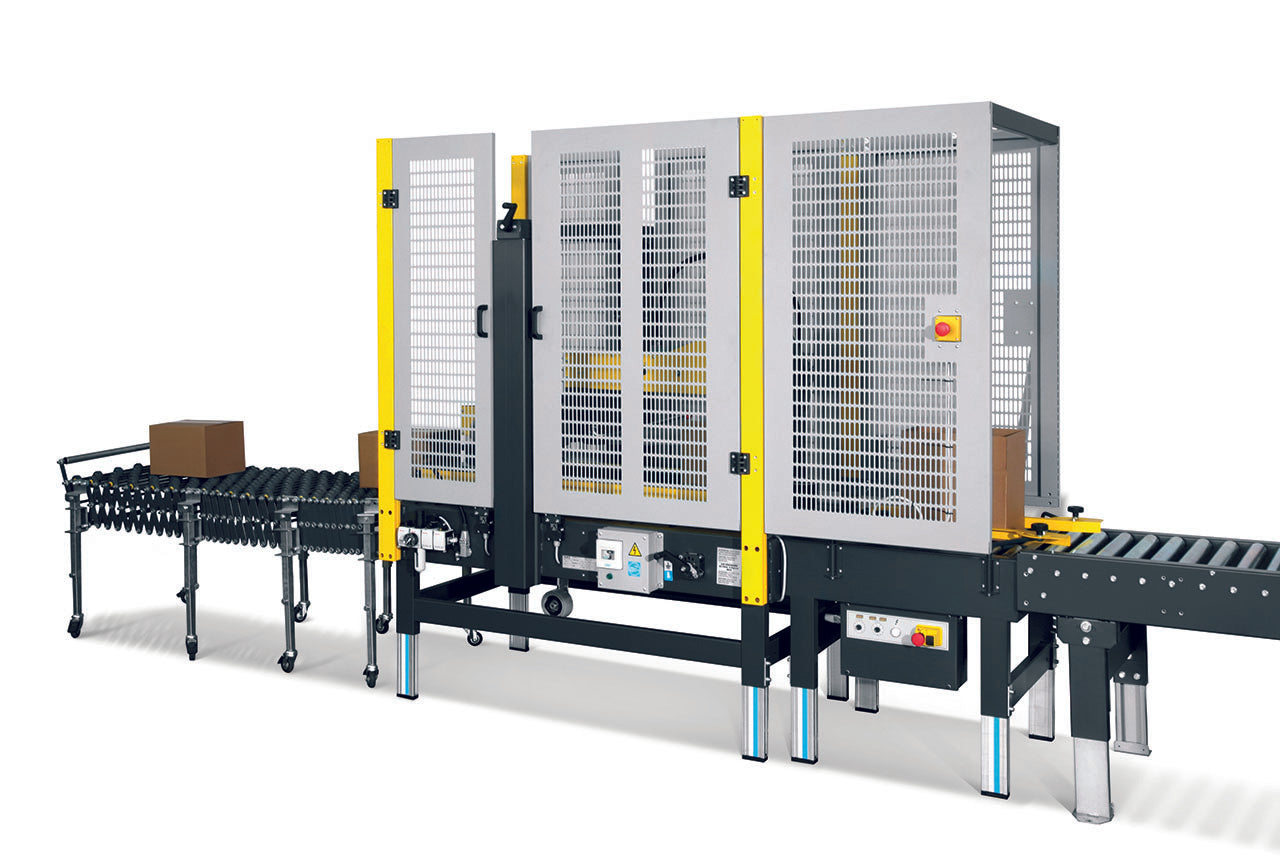

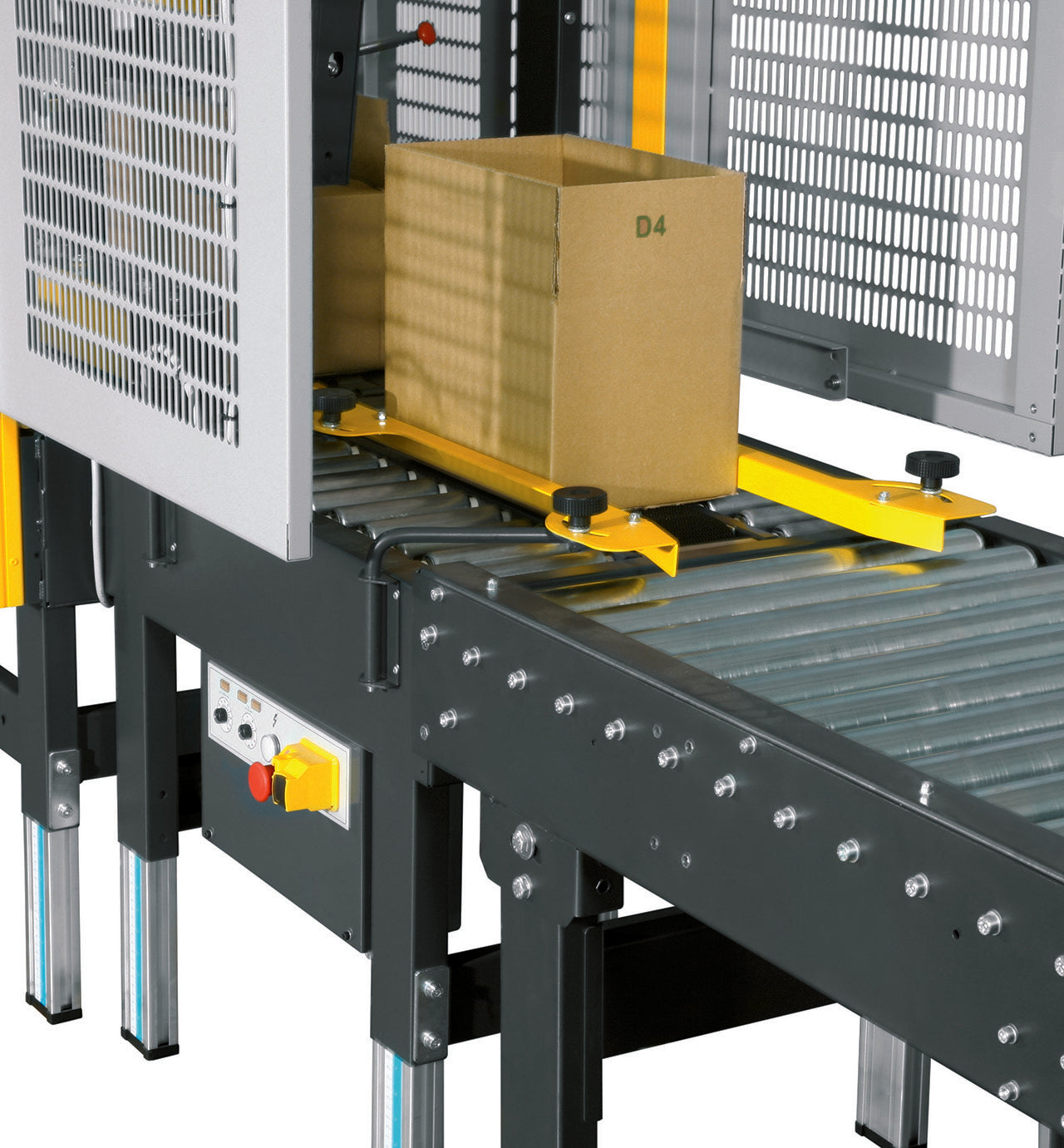

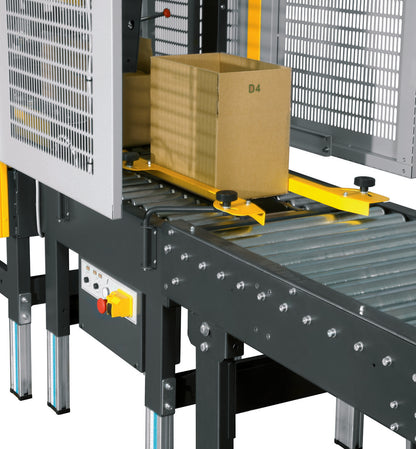

SM11
Box dimensions
Min. L 200 mm W 150 mm H 100 mm
Max L 600 mm W 500 mm H 600 mm
SM11-I
Machines in stainless steel
SA11
Machines with switch to control the movement of the top taping head frame by pneumatic pistons instead of handles & screws
SM11/4
Box dimensions
Min. L 200 mm W 105 mm H 90 mm
Max. L 600 mm W 500 mm H 600 mm
SM116
Box dimensions
Min. L 300 mm W 150 mm H 180 mm
Max. L 900 mm W 650 mm H 700 mm
