Key features

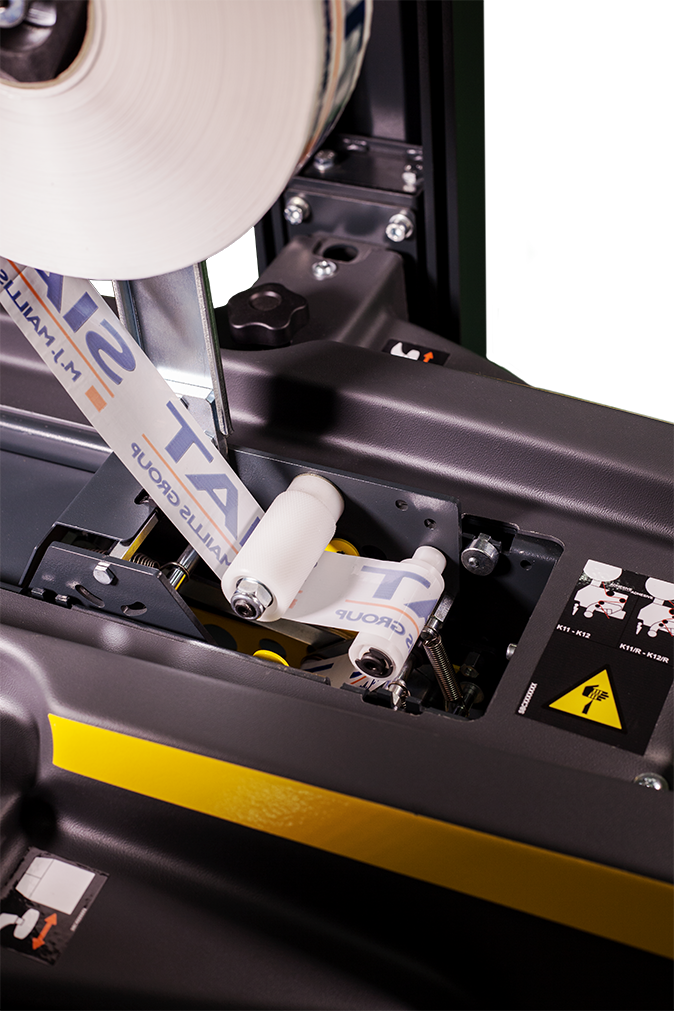

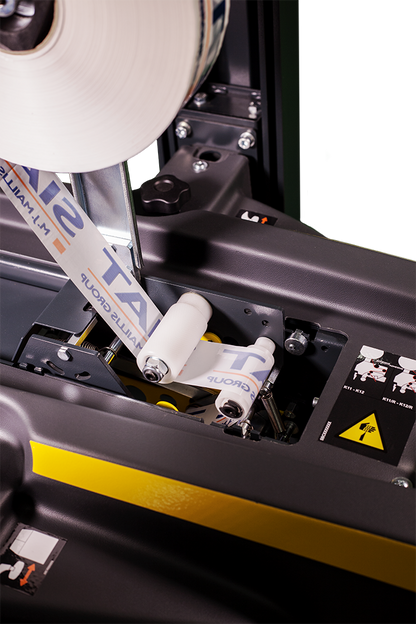

- Taping Unit: K11R (50 mm) or K12R (75 mm) SIAT K Taping Units for smooth, consistent application, fast reel changes, and easy threading.

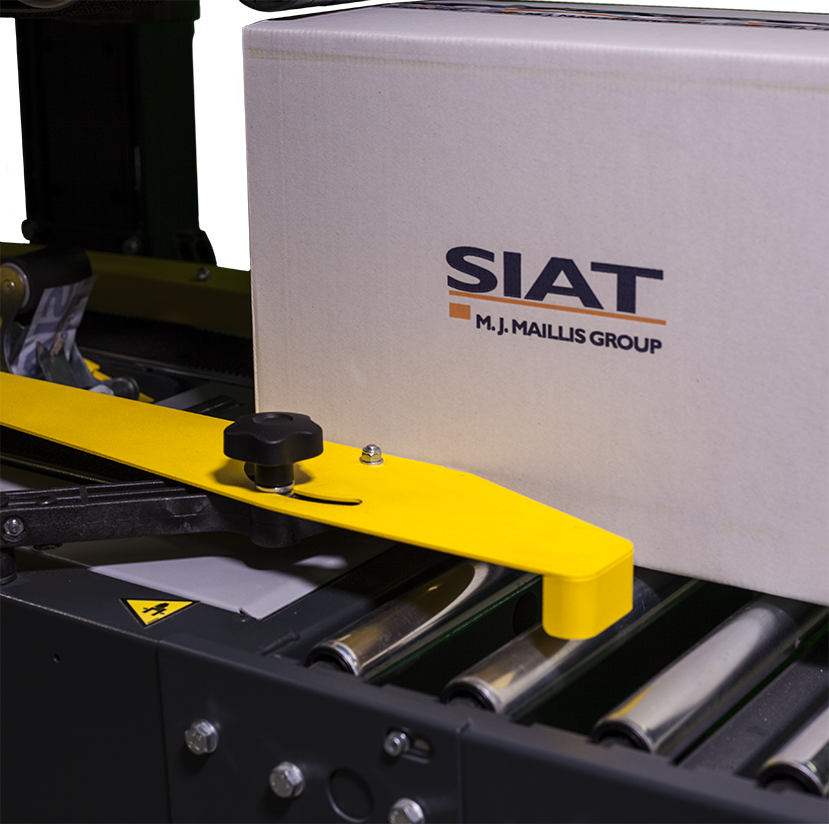

- Drive System: Top and bottom belts, dual 75 mm drive belts with manually adjustable side guides for stable, centered sealing.
- Performance: 2 motors (0.13 kW), belt speed 20 m/min, up to 20 boxes per minute (depending on size).

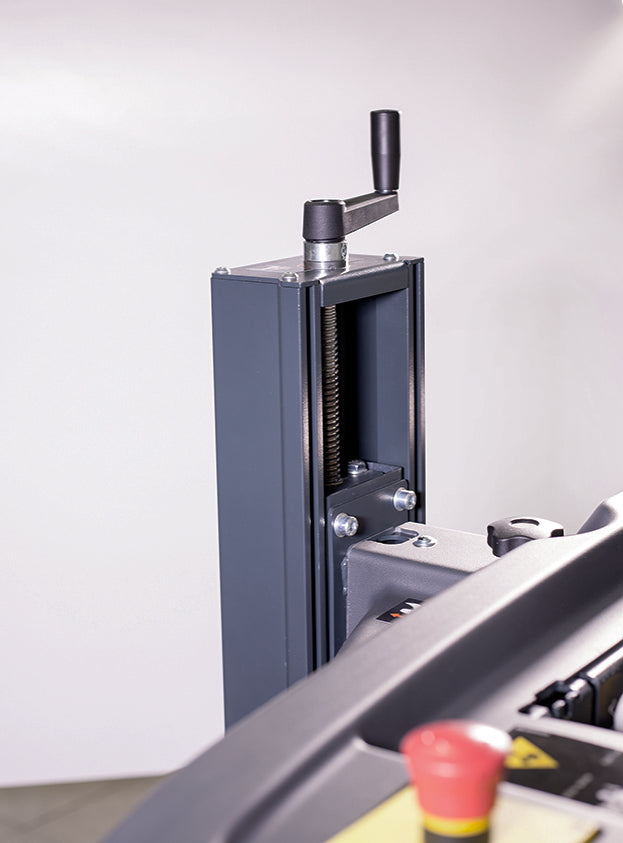

- Adjustments: Manual width and height adjustment for uniform boxes.
Box Dimensions:
- Min: L 150 mm, W 140/170* mm, H 100 mm
- Max: L ∞, W 500 mm, H 500 mm
*Top side pressure rollers required for W < 205 mm; upper guides optional.
Upgrades & Options:
- Larger Boxes: SK27 model handles up to 650 mm W × 700 mm H (columns adjustable to 950 mm H).
- Food & Harsh Environments: Available in stainless steel AISI 304 as the SM2 model.

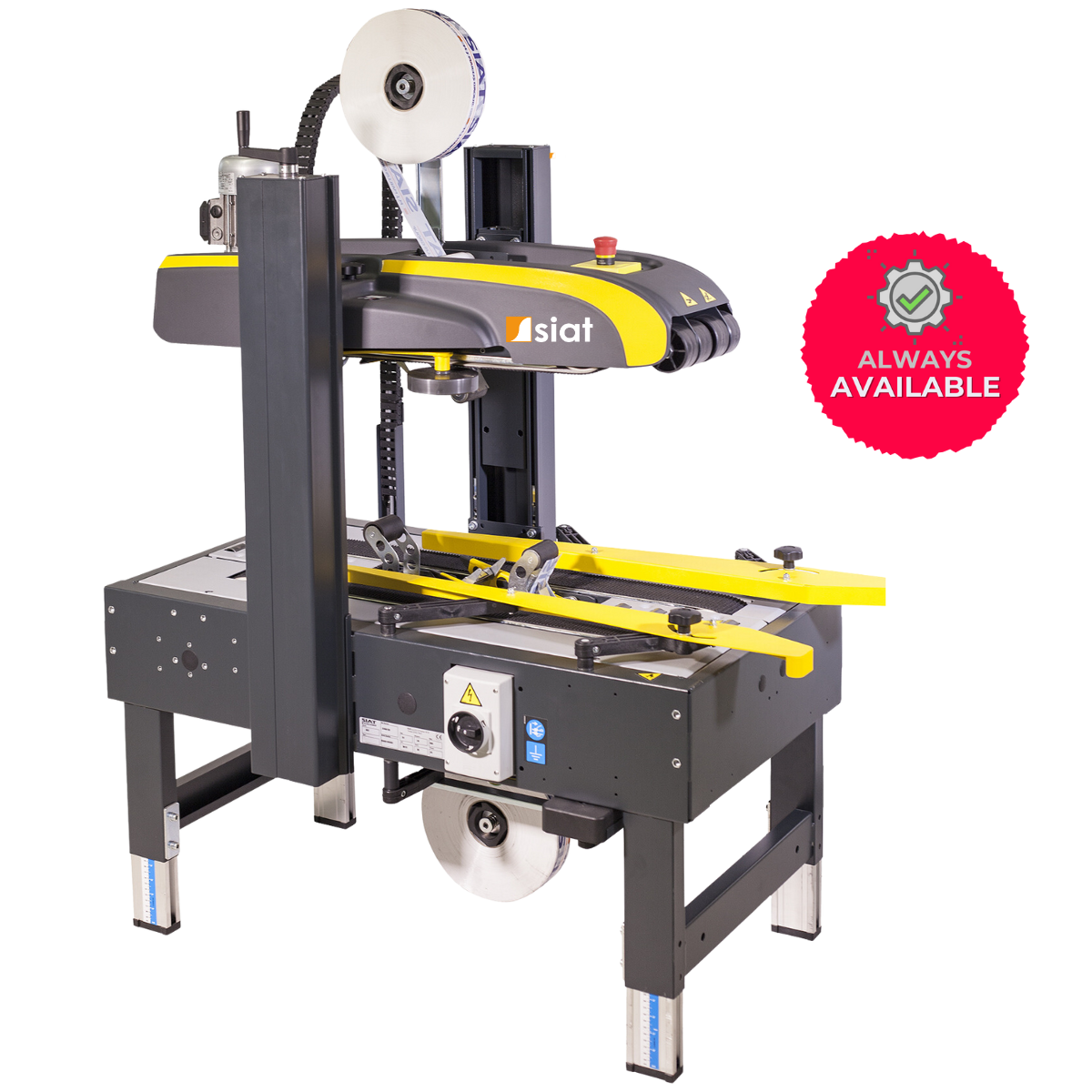

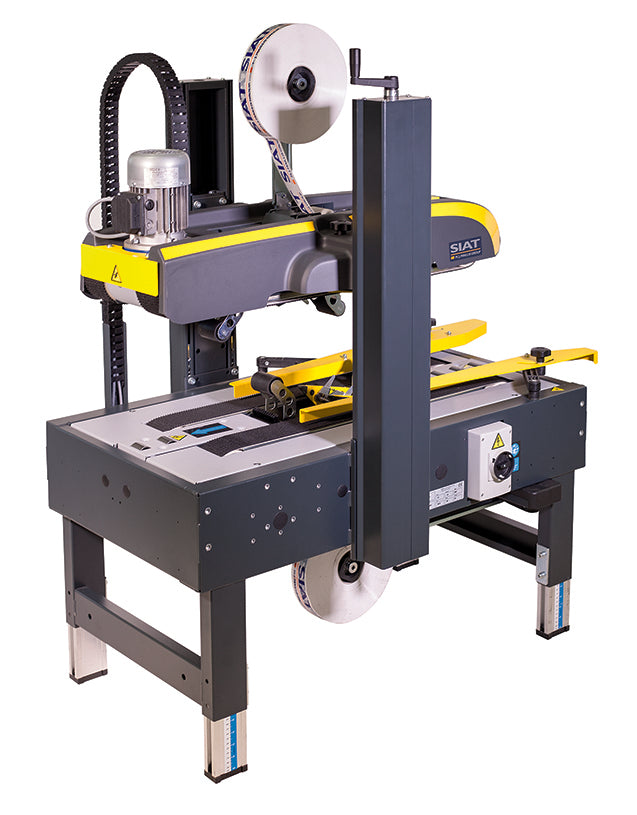

Availability: Standard SK20 ships from stock within 3 weeks, ensuring fast delivery and minimal downtime.
