HM11 Automatic Hot-Melt Carton Sealer

Name: HM11 Automatic Hot-Melt Carton Sealer
Brand: Orbi Packaging
Availability: InStock

HM11 Automatic Hot-Melt Carton Sealer

Please sign in to see pricing

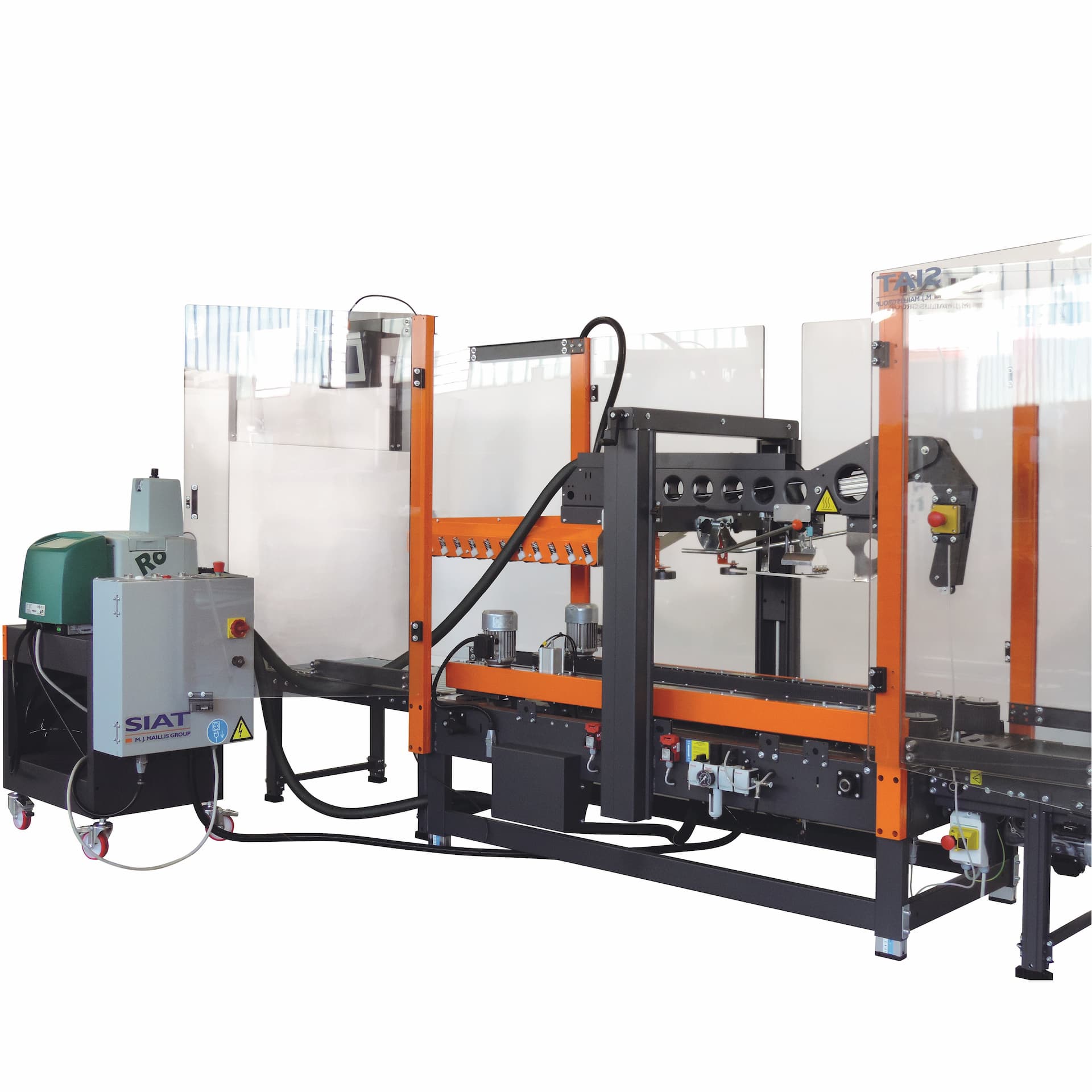

Available through Orbi Packaging in partnership with SIAT, the HM11 range of Automatic Hot-Melt Case Sealers is designed for high-efficiency carton sealing in demanding production environments.

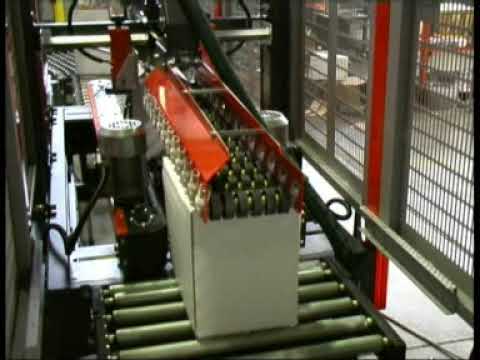

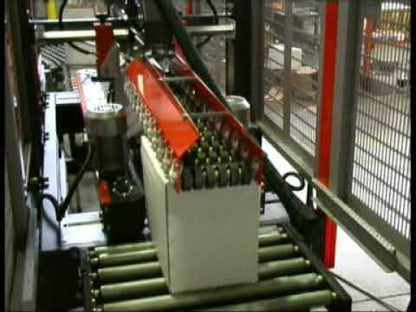

These automatic machines use side drive belts with manual adjustment and are ideal for sealing boxes of the same size using hot-melt adhesive. Cartons arrive from the filling station with the bottom flaps already sealed and are smoothly conveyed through the machine. Precision injectors then apply four consistent strips of hot-melt glue, while a flap compression roller system ensures the correct pressure for a secure, professional seal every time.

The HM11 range is built for productivity and reliability, requiring minimal operator involvement beyond glue loading and basic adjustments. Integrated safety panels protect operators from moving components and hot surfaces, ensuring safe operation on the production line.

SIAT’s Hot-Melt Case Sealer technology is specifically suited to fully automatic applications, offering significant efficiency and cost benefits on long production runs. When paired with Orbi Packaging’s expertise and support, the HM11 range delivers a robust, high-performance solution for businesses looking to automate and streamline their case sealing process.

View full details

Key features

HM11-TB
Automatic top-flaps-folder device
Manual adjustment on different box sizes by handles
Side drive belts (2 x 75 mm width each)
Drive belts speed 21 m/min.
2 motors kW 0,18 each
The top & bottom glue applicator dispenses the glue on the top and bottom flaps while boxes pass through the machine before top flaps folding

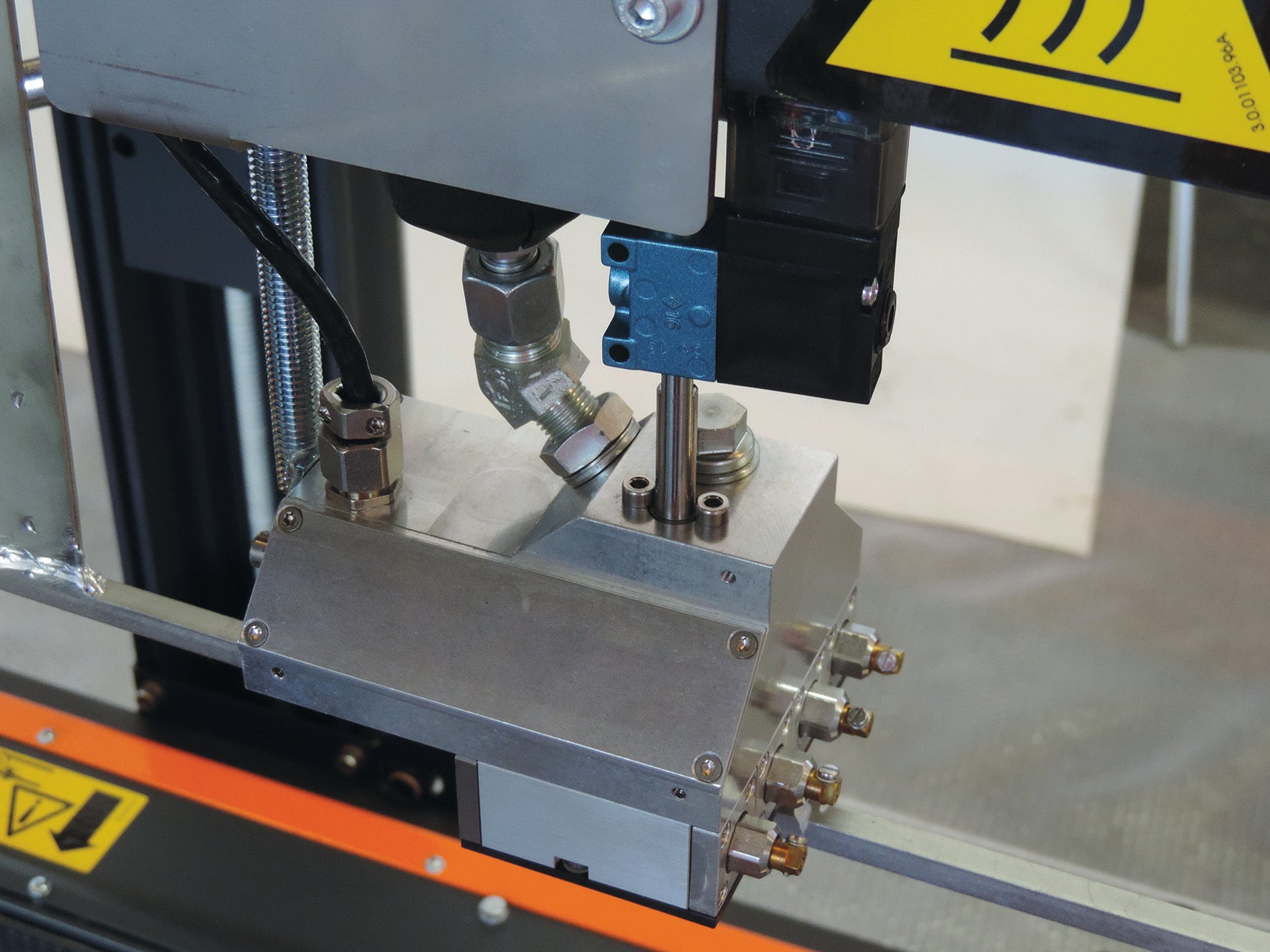

ROBATECH® hot-melt glue applicator on external carriage equipped with 5 Kgs tank, tube and glue dispenser
The glue dispenser adjusts glue temperature and volume
Storing of sealing programs
Timer setting to allow pre-heating adjustment
Box dimensions adjustment
Side safety protections with switches to disconnect electro-pneumatic circuits

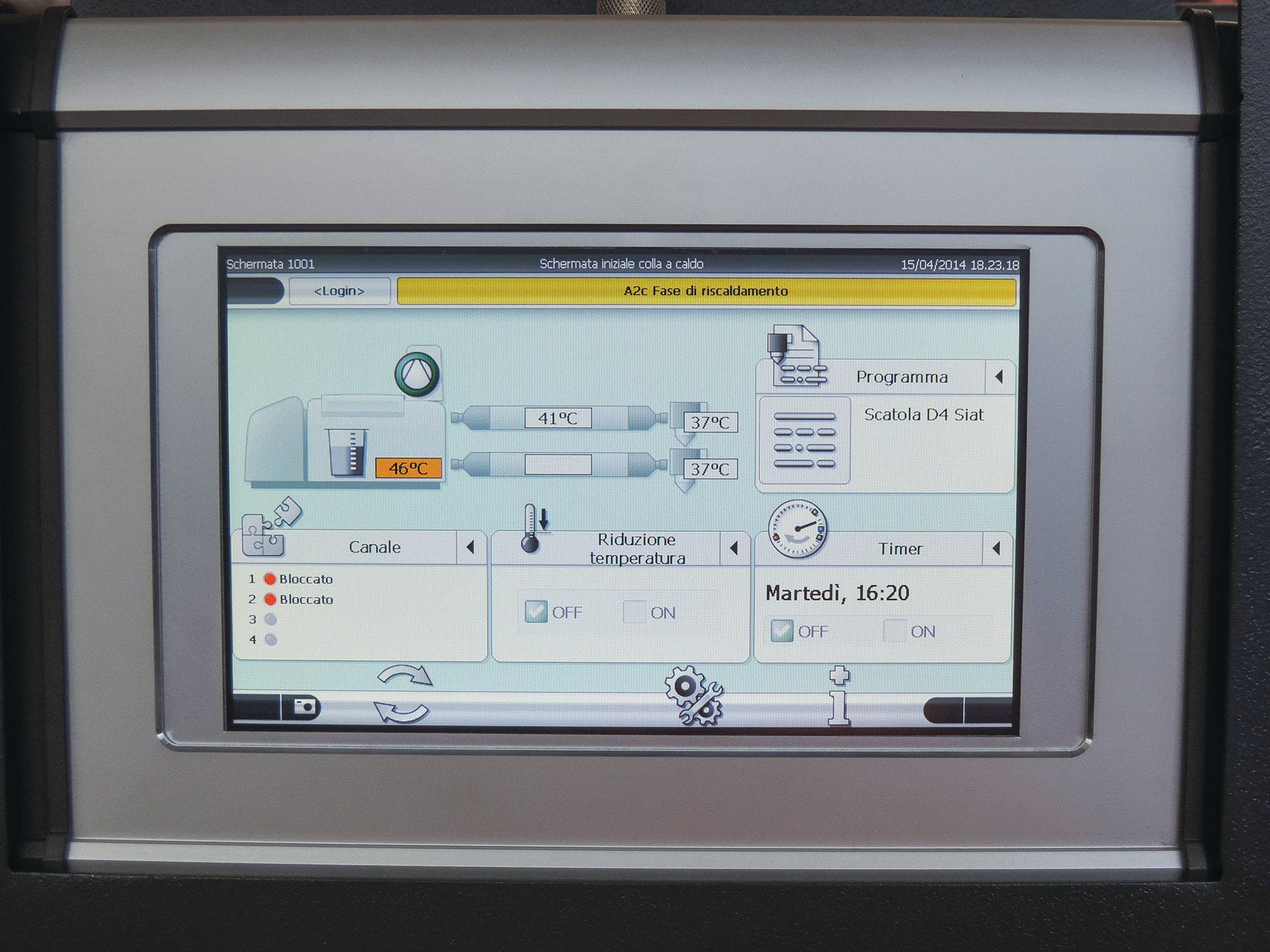

Control panel equipped with: main switch start, stop button, stop emergency button and photocells to control the boxes glued
Output: up to 1000 bph
Adjustable working height 500 – 750 mm
OMRON PLC
Box dimensions
Min. L 200 mm W 180 mm H 150 mm
Max. L 450 mm W 450 mm H 600 mm

HM11-T
Automatic top-flaps-folder device
Manual adjustment on the different box sizes by handles
Side drive belts (2 x 75 mm width each)
Drive belts speed 21 m/min
2 motors kW 0,18 each
The top glue applicator dispenses the glue on the top flaps while boxes pass through the machine before top flaps folding
ROBATECH® hot-melt glue applicator on external carriage equipped with 5 Kgs tank, tube and glue dispenser
The glue dispenser adjusts glue temperature and volume
Storing of sealing programs
Timer setting to allow pre-heating adjustment
Box dimensions adjustment
Side safety protections with switches to disconnect electro-pneumatic circuits
Control panel equipped with: main switch start, stop button, stop emergency button and photocells to control the boxes glued
Output: up to 1200 bph
Adjustable working height 500 – 750 mm
OMRON PLC
Box dimensions
Min. L 200 mm W 180 mm H 150 mm
Max. L 600 mm W 500 mm H 600 mm
